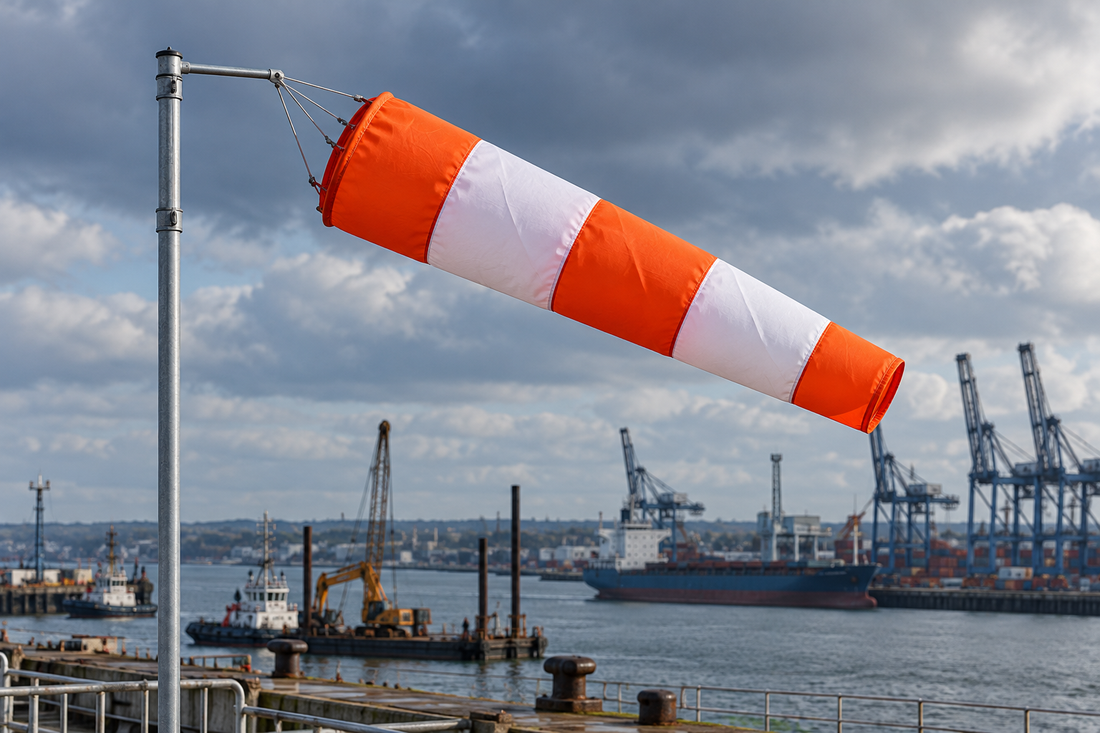

Windsocks for Ports, Harbours and Marine Construction Sites
Wind is the most significant uncontrolled variable in port and marine construction operations. It drives crane operating limits, affects vessel berthing decisions, governs the deployment of floating plant and determines the safety of personnel working at height over water. A windsock at a port or marine site is not secondary equipment, it is part of the operational decision-making infrastructure that keeps people and assets safe when conditions change.
This guide covers the specific windsock requirements for UK ports, harbours and marine construction environments: why the specification differs from a standard industrial installation, what viewing distances and site layouts demand, how the coastal environment affects hardware and fabric, and what your documentation should show.
Why ports and marine sites have specific requirements
Port and marine construction environments create a combination of demands that standard industrial windsock specifications do not fully address.
Multiple primary viewing positions at distance. On a COMAH chemical plant, the primary viewer is a person at a muster point. On a port or construction site, the primary viewers include crane operators in elevated cabs potentially 200 metres from the nearest mast, vessel masters on the bridge approaching a berth, banksmen on quayside coordinating lifts, and marine construction supervisors assessing conditions for dive operations, piling or dredging. Each of these positions is at a different distance and elevation. The windsock must be readable from all of them.
Constant and variable wind loads. Exposed port locations on open coastlines or estuary entrances experience mean wind speeds significantly higher than sheltered inland sites, with frequent rapid changes in direction as weather systems move through. A windsock at a busy container port on the English Channel coast may spend more time in winds above 15 knots than below it during a typical winter month.
The marine corrosion environment. Salt aerosol, tidal spray, fog and high humidity combine to create corrosion rates that destroy standard hardware far faster than any inland industrial environment. The hardware specification for a port installation is the same as for an offshore installation: 316 stainless steel throughout, without exception.
Operational criticality of real-time wind information. Port operations involve lifting heavy loads, containers, structural components, vessels, in environments where a wind gust can take a suspended load significantly off position. The crane operator’s wind threshold is a contractual and safety obligation, not a preference. The windsock is the real-time check before and during every lift.
Crane operations: the primary driver
For most port and marine construction sites, crane operations are the primary reason the windsock exists. UK crane operating limits are set by BS 7121 (Code of Practice for Safe Use of Cranes) and individual crane manufacturers’ specifications, typically expressed as maximum in-service wind speeds in metres per second or knots.
The windsock gives the crane operator three things:
Direction: which way is the wind blowing relative to the load and the landing zone?
Approximate speed: is the wind within the operating envelope, or approaching the limit?
Real-time trend: Is the wind picking up, dropping, or steady?
An anemometer gives a more precise speed reading. A windsock gives a faster, more intuitive read that the crane operator can assess at a glance without breaking concentration on the lift. Both have a role, the anemometer confirms the number, the windsock confirms the direction and the trend.
Viewing distance implications for crane sites
Tower crane operators in large port infrastructure projects may be working at heights of 30 to 60 metres and distances of 100 to 250 metres from the nearest mast. At 200 metres, a 4ft windsock is readable for direction but the angle of extension, the speed indicator, is genuinely difficult to judge accurately. A 6ft to 8ft sock at 200 metres gives a much clearer angle read and makes the 45-degree and 75-degree positions distinctly different from each other.
For major port construction projects with multiple crane positions spread across a large site, more than one windsock is almost always necessary to ensure coverage from all active lift positions.
Vessel berthing and harbour operations
For commercial harbours and marinas, wind direction and approximate speed are critical inputs to berthing decisions. A vessel master approaching a tight berth in a busy harbour needs to know:
Is the wind pushing me toward the berth or away from it? How strong is it, and is it gusting? Is it a headwind or a crosswind for the final approach?
The windsock mounted at a prominent, unobstructed position on the harbour approach answers all three questions at a glance, without any radio communication or instrument interpretation. Harbour masters at smaller commercial ports and marinas often position their primary wind indicator at the harbour entrance precisely so approaching vessels can read it on the approach without having to enter the harbour to get the information.
Port Marine Safety Code
The Port Marine Safety Code, published by the Department for Transport and applicable to all statutory harbour authorities in Great Britain, places duties on harbour authorities to manage navigational safety. Wind monitoring as part of operational safety management falls within the scope of the Code, and the adequacy of wind direction information provision is a consideration in port safety management documentation. Contact your Harbour Master and safety manager for the specific requirements applicable to your port.
Marine construction sites
Marine construction covers a wide range of operations: bridge building, jetty and quay construction, offshore wind foundation installation, cable-lay, pipeline work, dredging, piling and coastal protection. Each has specific wind sensitivity considerations.
Offshore wind construction is perhaps the most wind-sensitive marine construction activity currently active in UK waters. Installing monopile foundations, transition pieces and turbine components involves crane vessels operating at the limits of their capability in open sea conditions. Installation weather windows are carefully assessed, and wind speed and direction at the installation location are critical inputs to the go/no-go decision.
Onshore assembly and marshalling yard operations, where components are staged before being loaded onto installation vessels, also require wind monitoring, particularly for tall components that present significant wind area.
Piling and dredging are affected by wind primarily through wave generation, vessel stability and the behaviour of suspended loads and suction hose assemblies. A change in wind direction can create a sea state that makes continued operation unsafe even if the wind speed itself is within limits.
Coastal protection and revetment work often involves heavy plant working on exposed foreshore and beach locations where wind conditions can change rapidly and where personnel are working with heavy materials that are difficult to control in gusty conditions.
For all of these applications, one or more well-sited windsocks, readable from the primary operational positions on the site, is part of the basic site setup.
Specification for port and marine environments
Fabric: Piggotts500 at 265gsm PU-reinforced polyester is the appropriate specification for all coastal and marine installations. The waterproof coating keeps the sock flying at the correct weight throughout its service life despite constant salt exposure. Higher tensile strength handles the gust loads typical of exposed coastal sites. See our fabric guide for the full comparison.
Hardware: 316 stainless steel throughout without exception. Stainless steel mouth ring, stainless steel snap-on harness or lace ties, stainless steel swivel arm and bearing, stainless steel mast hardware. Our Snap-on Windsock and Lace-on Windsock in appropriate sizes are the standard specification for port and marine applications.
Size: 6ft to 8ft for most port and harbour applications where the primary viewing distance is 100 metres or more. 4ft to 6ft for smaller harbours and marinas where the sock is being read from close range. 8ft where crane cab viewing distances exceed 150 to 200 metres. See our sizing guide for the full breakdown.
Mast/pole: Hot-dip galvanised steel or fibreglass mast with a hinged baseplate for access. In very exposed locations where corrosion of the mast itself is a concern, fibreglass is the better choice over painted steel. Mast height should clear surrounding port structures and equipment to give the sock free-stream air, port structures, containers, cranes and vessels all create significant turbulence that will give misleading readings if the sock is in their lee.
Illumination: Many ports operate 24 hours. An unlit windsock is invisible to a vessel master approaching on a night approach or to crane operators working a night shift. Specify illuminated options for any port operating outside daylight hours.
Replacement interval: 6 to 9 months for exposed coastal port locations. Some very exposed sites, open-sea harbour entrance locations, offshore construction marshalling yards will require 6-monthly replacement. Monthly fresh-water rinse is the most effective maintenance measure between replacements.
Siting at a port or marine construction site
Port sites present specific siting challenges. Container stacks, cranes, buildings, vessels alongside the quay and temporary structures all create localised turbulence. A windsock in the lee of a container stack reads the conditions behind the containers, not the open-harbour wind.
The siting principle is consistent: mount in free air above surrounding obstructions, with clear sightlines from all primary viewing positions, crane cabs, vessel approaches, muster points and the main site access. On a large port site this may mean multiple masts at different locations rather than one tall mast in a central position.
See our guide on how to site a windsock for the underlying siting principles, and our harsh environments guide for the coastal specification in detail.
Frequently asked questions
Do ports need windsocks by law? The Port Marine Safety Code places duties on statutory harbour authorities to manage navigational safety, within which wind monitoring is a consideration. Environment Agency environmental permits for port-adjacent industrial activities may include a wind direction indicator condition. For marine construction sites, CDM Regulations 2015 and HSE site safety requirements apply. Specific requirements vary by site type and activity. Contact your Harbour Master and H&S advisor for the applicable requirements at your port.
What size windsock does a port need? 6ft to 8ft for most commercial port applications where cranes or vessels need to read the sock from 100 metres or more. Larger sites with long crane viewing distances should consider 8ft as the minimum. Multiple socks are typically needed on large sites to ensure coverage from all primary viewing positions.
Why does hardware matter more at a port than an inland site? Salt spray corrosion at a coastal port is significantly more aggressive than in any inland environment. Plated steel eyelets and harness components begin to corrode visibly within months at an exposed port location. 316 stainless steel hardware resists marine corrosion effectively and will outlast standard hardware by years in a coastal environment.
How do I site a windsock at a container port where containers stack to 5 or 6 metres? The sock must fly above the maximum stacked height of surrounding containers to read free-stream air rather than the turbulent wake behind the stack. A mast of 7 to 8 metres or more is typically needed at a container terminal. Position the mast where the prevailing wind direction has an unobstructed fetch to the sock ; a mast on the downwind side of a container stack in the prevailing wind direction will be in turbulent air for much of the time.
What is the best windsock for a marina? For a marina, a 4ft to 6ft Piggotts500 sock with stainless steel hardware on a 3 to 4 metre mast, positioned at the harbour entrance or a prominent point visible from the approach, is the standard recommendation. Size up to 6ft if the approach distance from the harbour entrance is more than 100 metres.
How often should a port windsock be replaced? 6 to 9 months for exposed coastal port locations as a planned replacement programme. Some very exposed sites will need 6-monthly replacement. Inspect quarterly and replace earlier than the scheduled date on any finding of hardware corrosion, fabric stiffness or significant colour fading.
