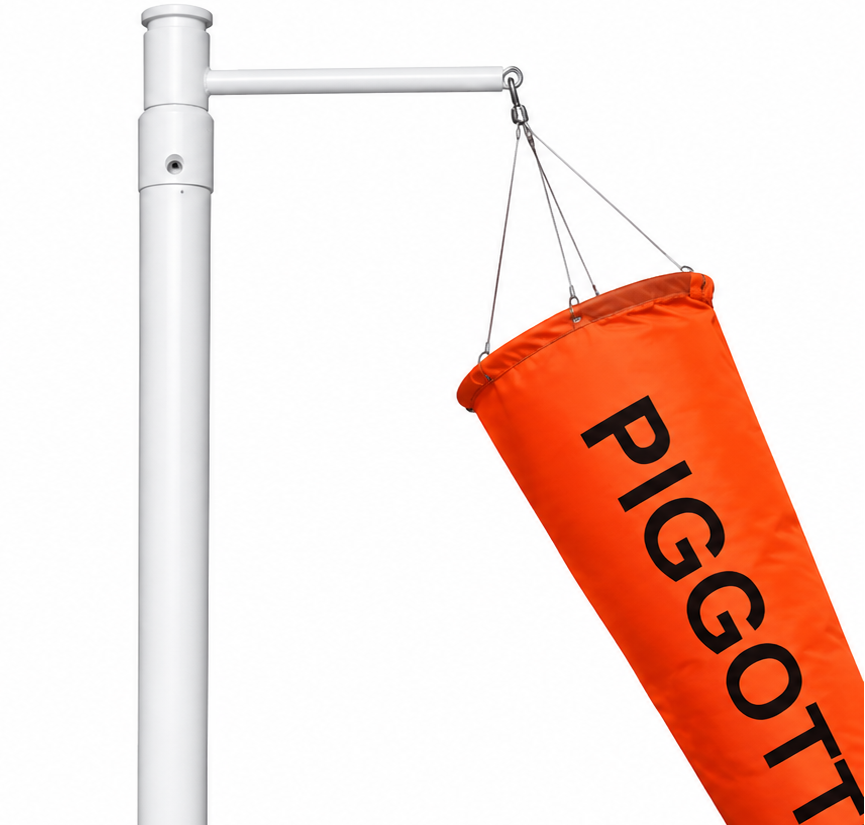

Piggotts Snap-on Windsock

1 4

The Piggotts Snap-on Windsock is our heavy-duty specification, built for sites where accurate wind direction indication is a compliance requirement and fabric failure is not an option.

CAA CAP 168 ICAO Annex 14 CAA CAP 1264

Manufactured in the UK from PU-reinforced polyester in international orange (dayglow), the Snap-on connects to your swivel arm via a stainless steel harness that clips securely to four brass eyelets on the reinforced mouth section. No lacing, no ties, the harness locates positively and holds under gust load, while remaining quick to disconnect for routine sock changes or inspection.

How to choose the right fabric for your requirements.

Custom Options

Call 01376 514372 to discuss branded windsock prints and customised colour variations of striped windsocks available.
£62.77
£62.77
Sale Sold out
View full details


Choose your fabric

Piggotts200

200 gsm, PU coated polyester

Standard-duty, everyday sites

  • General industrial and commercial sites
  • Standard weather exposure
  • Flame retardant, fluorocarbon coated, printable

Piggotts500

265 gsm, coated polyester

Extreme locations and climates

  • High abrasion resistance and strength
  • High elasticity, some anti-static properties
  • Flame retardant, fluorocarbon proofed, printable

PiggottsASGrid

236 gsm, PU coated anti-static polyester

EX Zone 1 hazardous areas

  • Anti-static, for explosive atmosphere zones
  • Chemical resistant, printable
  • EN533 Index 1, GO/RT 3279:1999

Specification

Type Snap-on
Mouth ring Marine grade stainless steel
Harness Marine grade stainless steel, four-way wire rope
Harness size (≤24" mouth) BA002-0027
Harness size (>24" mouth) BA002-0028
ICAO Annex 14 Vol I & Vol II, size-dependent
CAA CAP 168 Yes — Unit: 12ft × 36" size
CAA CAP 1264 Applicable for heliport landing area use — Unit: at recommended sizes (e.g. 4ft × 15")
FAA AC 150/5345-27F Size 1 (8ft) & Size 2 (12ft) equivalent
Standard sizes 3ft to 12ft, mouth 14"–36"
Standard colours Hi-Vis Orange, Hi-Vis Yellow, Red, White
Extras available Reflective tape, printed names/logos

Certified to

Our windsocks also support compliance on COMAH and DSEAR-regulated sites when written into site safety documentation and risk assessments — neither regulation specifies windsock certification directly.

CAA CAP 168UK
ICAO Annex 14International
CAA CAP 1264UK
