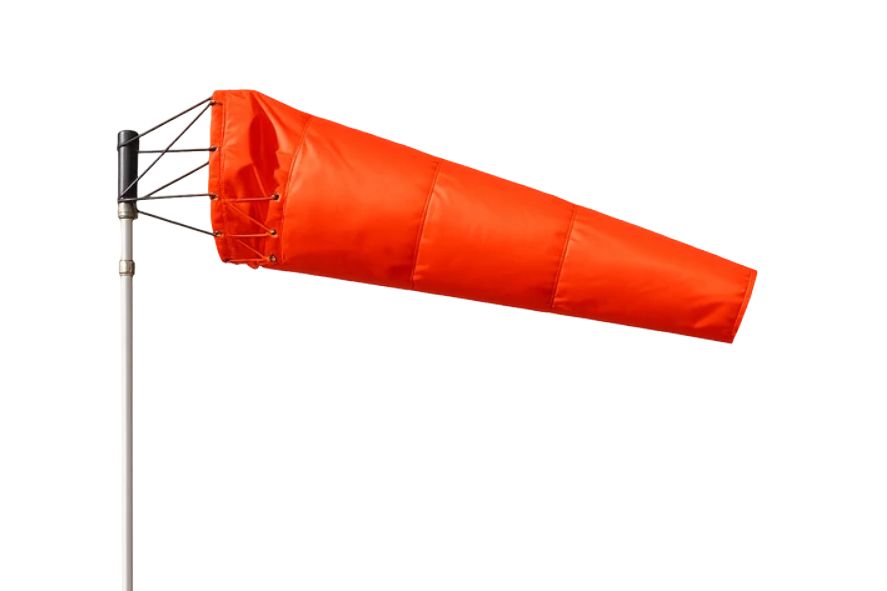

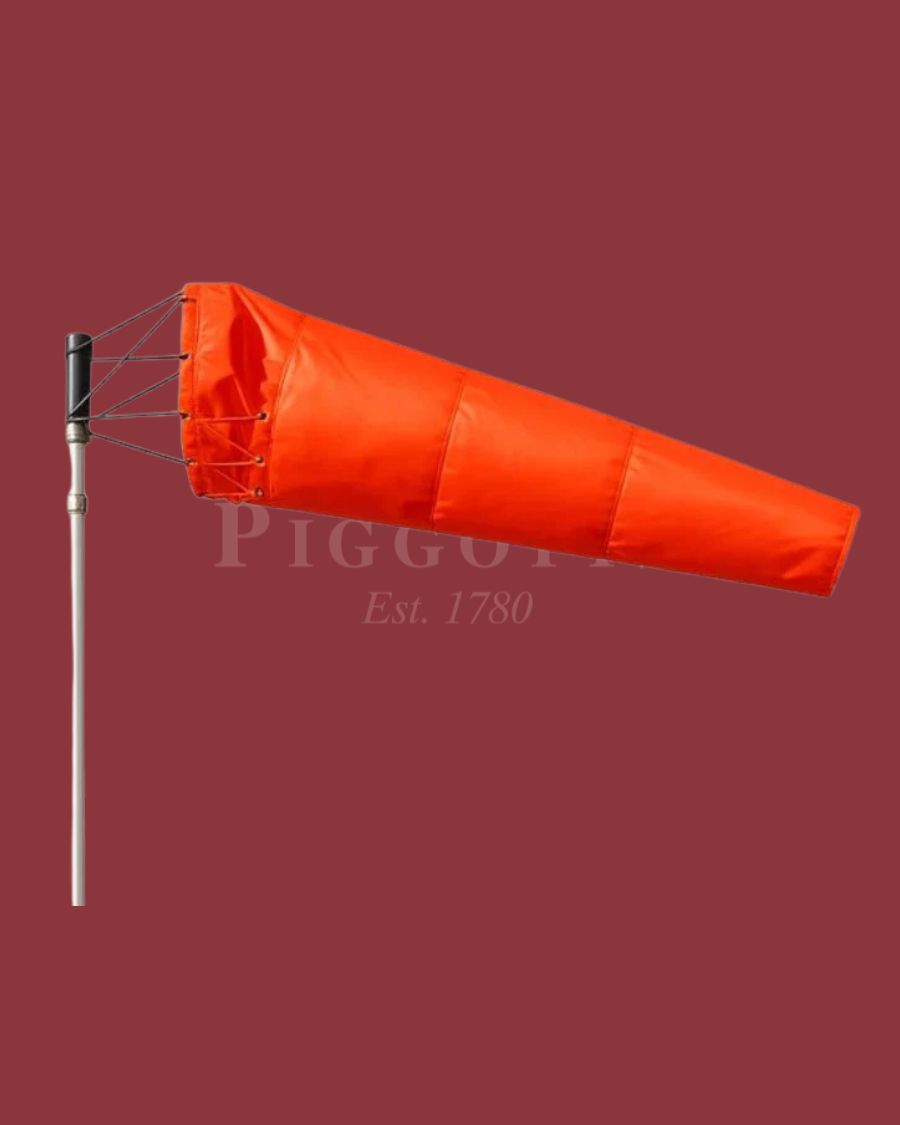

Piggotts Lace-on Windsock

  • Safeguard Windsock image 1
  • Safeguard Windsock image 2
1 4

The Piggotts Lace-on Windsock is our heavy-duty specification, built for sites where accurate wind direction indication is a compliance requirement and fabric failure is not an option.

CAA CAP 168 ICAO Annex 14 CAA CAP 1264

Manufactured in the UK from PU-reinforced polyester in international orange (dayglow), the Lace-on connects to your swivel arm via ties through four brass eyelets on the reinforced mouth section. The lace-on fixing allows precise tensioning of the sock on the ring for a secure, close fit, and is the preferred connection method on many long-established installations.

How to choose the right fabric for your requirements.

Custom Options

Call 01376 514372 to discuss branded windsock prints and customised colour variations of striped windsocks available.
£62.77
£62.77
Sale Sold out
View full details


Choose your fabric

Piggotts200

200 gsm, PU coated polyester

Standard-duty, everyday sites

  • General industrial and commercial sites
  • Standard weather exposure
  • Flame retardant, fluorocarbon coated, printable

Piggotts500

265 gsm, coated polyester

Extreme locations and climates

  • High abrasion resistance and strength
  • High elasticity, some anti-static properties
  • Flame retardant, fluorocarbon proofed, printable

PiggottsASGrid

236 gsm, PU coated anti-static polyester

EX Zone 1 hazardous areas

  • Anti-static, for explosive atmosphere zones
  • Chemical resistant, printable
  • EN533 Index 1, GO/RT 3279:1999

Specification

Type Lace-on
Attachment Reinforced fabric band with brass eyelets
Mounting For fixed-frame basket cages
Compatibility Standard basket-frame masts
ICAO Annex 14 Vol I & Vol II, size-dependent
CAA CAP 168 Yes — Unit: 12ft × 36" size
CAA CAP 1264 Applicable for heliport landing area use — Unit: at recommended sizes (e.g. 4ft × 15")
FAA AC 150/5345-27F Size 1 (8ft) & Size 2 (12ft) equivalent
Standard sizes 3ft to 12ft, mouth 14"–36"
Standard colours Hi-Vis Orange, Hi-Vis Yellow, Red, White
Extras available Reflective tape, printed names/logos

Certified to

Our windsocks also support compliance on COMAH and DSEAR-regulated sites when written into site safety documentation and risk assessments — neither regulation specifies windsock certification directly.

CAA CAP 168UK
ICAO Annex 14International
CAA CAP 1264UK
