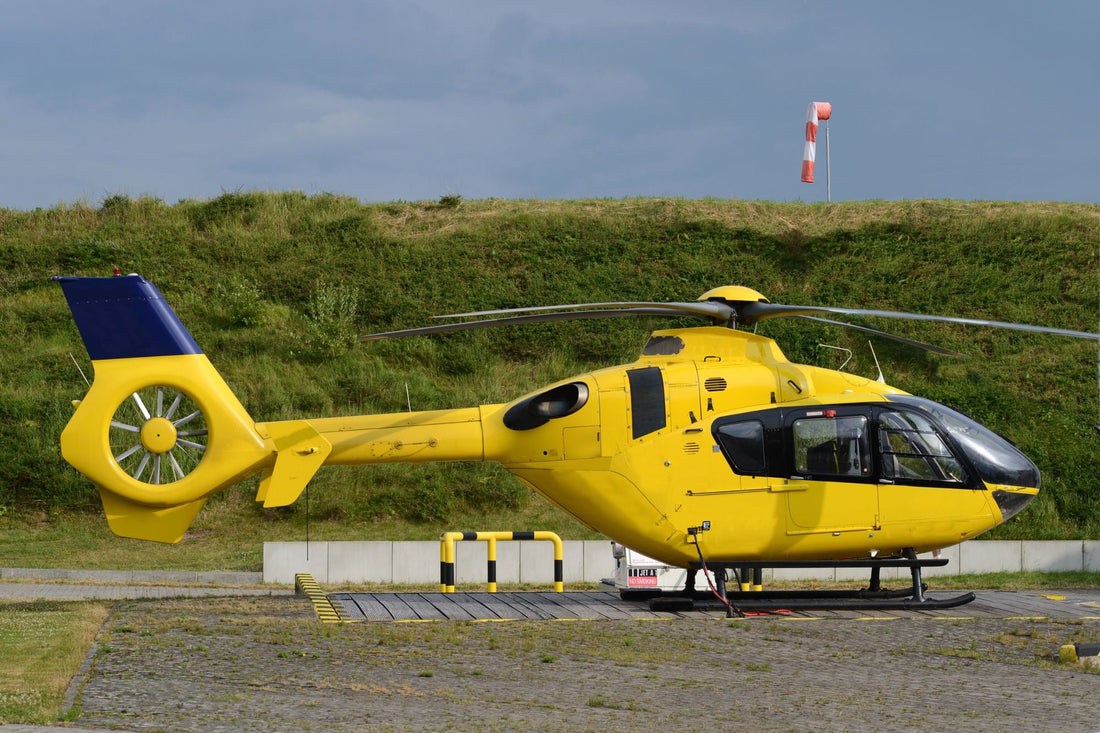

Windsocks for Helipads and Helidecks: A Complete Guide
Every helicopter landing area needs a wind direction indicator that a pilot can read clearly on approach, in all weather conditions and at any time of day or night.
The regulatory framework that governs what that indicator must be depends on the type of landing area: CAP 168 for licensed onshore heliports, CAP 1264 for hospital and NHS helicopter landing sites, and CAP 437 for offshore helidecks on the UK continental shelf. Getting the specification wrong ; particularly on an offshore installation ; is not an administrative finding. It is a flight safety issue.
This guide covers all three regulatory frameworks, the specific windsock requirements for each landing area type, and the practical specification decisions that need to be made for onshore, hospital and offshore installations.
The regulatory framework: three publications, three contexts
CAP 168: licensed onshore heliports
CAA CAP 168 Licensing of Aerodromes applies to onshore heliports that are licensed as aerodromes by the CAA. Chapter 7 covers visual aids including wind direction indicators, referencing ICAO Annex 14 Volume II ; the volume of ICAO Annex 14 that addresses helicopter operations specifically ; for the physical specification.
CAP 168 applies to: all CAA-licensed heliports in the UK, including commercial heliports, licensed corporate heliports and any helicopter landing area holding a CAA aerodrome licence.
The physical requirements under CAP 168 for wind direction indicators follow ICAO Annex 14 Volume II: international orange fabric, correctly sized for visibility from the approach path, positioned in free-stream air clear of obstructions, and illuminated where operations take place at night.
CAP 1264: hospital and NHS helicopter landing sites
CAP 1264 Standards for Helicopter Landing Areas at Hospitals is a CAA publication specifically addressing helicopter landing sites at NHS trusts, air ambulance operations and hospital estates. It is the applicable reference for hospital helipads and covers the full range of design, operational and equipment requirements for helicopter landing sites at medical facilities, including wind direction indicators.
Hospital helipads are typically unlicensed, meaning they do not hold a CAA aerodrome licence and are not directly subject to CAP 168. However, CAP 1264 applies as the specific standard for this sector, and helicopter operators serving hospital landing sites assess them against it. Any hospital helipad used by air ambulance or HEMS (Helicopter Emergency Medical Service) operators will be expected by those operators to meet the CAP 1264 requirements, which flow from ICAO Annex 14 Volume II.
The practical implication for hospital estates managers: your helipad windsock should meet the same physical specification as a licensed heliport ; international orange, correctly sized, visible from the approach, illuminated for night operations. CAP 1264 is the document that frames this for your context.
CAP 437: offshore helidecks
CAA CAP 437 Standards for Offshore Helicopter Landing Areas provides the criteria applied by the CAA in assessing the standards of offshore helicopter landing areas for worldwide use by helicopters registered in the UK.
Helidecks on the UK continental shelf are regarded as unlicensed landing areas, and offshore helicopter operators are required to satisfy themselves that each helideck to which they operate is fit for purpose. The helicopter operators discharge this responsibility by accepting Helicopter Landing Area Certificates as a product of helideck inspections completed by the Helideck Certification Agency.
CAP 437 applies to: all offshore helidecks on the UK continental shelf, including fixed platforms, floating production units, accommodation vessels, cable-lay vessels and other offshore installations where helicopters land.
The HSE accepts that conformance with CAP 437 will demonstrate compliance with applicable offshore regulations. This is an important statement: CAP 437 is not just a CAA aviation standard for offshore helidecks, it is also the benchmark against which the HSE assesses the adequacy of helideck arrangements as part of offshore safety regulation.
CAP 437 has become the de facto standard for offshore helideck installations around the world and most aviation authorities recommend that it should be followed for the safe marking of offshore helidecks.
Onshore helipad windsocks: specification and siting
For most onshore helipads ; licensed heliports, corporate estate helipads, emergency services helipads and hospital landing sites ; a 4ft to 8ft windsock is appropriate, sized to be readable from the approach path at the distances and angles typical of the aircraft using the site.
The key specification requirements for onshore installations:
Fabric: international orange PU-reinforced polyester. The colour must be clearly visible against the background against which it is viewed during approach, which on a hospital rooftop may include varied sky and urban building backdrops.
Hardware: stainless steel mouth ring, harness and eyelets. On rooftop installations exposed to wind and rain, hardware corrosion is an accelerated risk. Stainless steel throughout avoids the eyelet and harness failures that occur with plated alternatives.
Size: 4ft to 6ft for smaller helipads with short approach paths; 6ft to 8ft for larger sites or where the approach path extends further. The sock must be clearly readable from the cockpit throughout the approach ; if the pilot cannot read it clearly, it is undersized for the site.
Siting: positioned clear of the FATO (Final Approach and Take-Off area), mounted on a mast or bracket that puts the sock in free-stream air away from rooftop plant, parapets and plant rooms that could cause turbulence. On a rooftop helipad, this typically means a wall bracket or short mast at one edge of the pad, clear of the landing area.
Illumination: essential for any helipad used at night, including emergency air ambulance operations which may respond at any hour. The light must illuminate the sock clearly from the approach path without causing glare into the cockpit. External floodlighting from above is the most common arrangement on onshore installations.
Our Snap-on Windsock and Lace-on Windsock in 4ft to 8ft sizes cover most onshore helipad applications. Contact our team to discuss pole and bracket options for your specific installation.
Hospital helipad windsocks: specific considerations
Hospital helipads sit at the intersection of aviation safety, NHS estates management and the specific requirements of air ambulance and HEMS operations. A few additional considerations apply beyond the standard onshore specification:
Night operation is the norm, not the exception. Air ambulance operations respond at all hours. Illumination is not optional for any hospital helipad that serves emergency rotary wing operations.
Rooftop siting complexity. Hospital rooftops carry mechanical plant, ventilation equipment, antennae and other structures that create turbulence. The windsock must be sited to fly in free-stream air rather than in the disturbed flow behind a plant room or around a parapet edge. CAP 1264 includes guidance on airflow testing of onshore elevated helipads ; this is worth reviewing if the siting of the windsock on your rooftop is complicated by surrounding structures.
Visibility from multiple approach paths. Hospital helipads may be used from different approach directions depending on the layout of the surrounding area and the specific operation. The windsock position should give a readable indication from all operational approach paths, not just the primary one.
Estates management context. Hospital windsock maintenance typically sits with the estates team rather than an aviation operations function. The inspection and replacement regime should be documented in the estates maintenance programme, not left to informal arrangements. A degraded windsock on a hospital helipad is a flight safety issue for the next arriving air ambulance, not an administrative footnote.
Offshore helideck windsocks: the CAP 437 specification
Offshore helideck windsocks operate in some of the most demanding environments encountered in any windsock application: continuous salt spray, high mean wind speeds, 24-hour operations, ATEX-classified electrical environments and the specific visibility requirements of pilots landing on a moving or fixed offshore deck.
The CAP 437 requirements for wind direction indicators on offshore helidecks:
Illumination: permanently installed, internally illuminated windsocks are required on offshore helidecks used for night operations. External floodlighting is not the standard for offshore helidecks ; internal illumination is specified because it provides even illumination of the sock from all wind directions, which external floodlighting cannot guarantee.
ATEX/IECEx certification: all electrical components must be certified to the ATEX/IECEx standard appropriate to the zone classification of the platform. Oil and gas platforms carry Zone 1 and Zone 2 electrical zone classifications. ATEX/IECEx-certified explosion-proof illuminated windsocks for offshore helidecks must comply with CAP 437 and ICAO Annex 14 specifications.
Siting: positioned clear of the FATO and free of obstacles that could disrupt airflow, to give free-stream wind conditions rather than deck-influenced turbulence. On a platform, the relationship between deck structures, process equipment and the FATO determines where the windsock can be positioned to give an accurate free-stream reading. This is a site-specific assessment for each platform.
Hardware: 316 stainless steel mast, swivel arm and all hardware throughout. Offshore lighting systems are exposed to extreme UV radiation, wind, salt spray and vibration. Galvanised steel corrodes in marine air; 316 stainless steel and tempered glass optics provide the durability and lifespan the environment demands.
Maintenance: maintained to a schedule that ensures reliability during all operational periods. Sock replacement intervals of 6 to 9 months are realistic on an offshore helideck, given constant wind load, salt spray and 24-hour exposure. The replacement schedule should be documented and adhered to, not managed reactively.
Helideck Certification Agency (HCA) inspection: the HCA, acting for the interests of offshore helicopter operators, provides Helicopter Landing Area Certificates as a product of helideck inspections. The wind direction indicator is part of the HCA inspection. A non-compliant or degraded windsock will be flagged in the HCA report and can affect the platform’s HLAC status, with operational consequences for helicopter access.
Offshore helideck windsocks are a specialist application and we recommend discussing your specific platform with our team. The ATEX certification requirements, deck layout and zone classification all need to be understood before specifying the illumination system.
Vessels and wind turbine platforms
CAP 437 includes requirements for helicopter landing areas on vessels, as well as winching area arrangements located on wind turbine platforms. Accommodation vessels, cable-lay ships, survey vessels and similar craft with helidecks are covered by CAP 437 in the same way as fixed platforms.
Wind turbine platforms present a specific context: wind farm vessels, cable layers and hybrid-use vessels sometimes install full ATEX systems despite operating in Zone 2 or non-hazardous areas, creating unnecessary cost and complexity. Where the landing area is not in an ATEX-classified zone, the ATEX requirement for illumination does not apply. Confirm the zone classification of the specific installation before specifying.
Maintenance for all helicopter landing areas
For any helicopter landing area, the windsock maintenance regime should reflect the operational importance of the installation.
Daily visual check as part of the helipad or helideck inspection: is the sock flying freely, clearly visible, illuminated (where applicable) and undamaged?
Quarterly hands-on inspection covering fabric condition, swivel rotation, harness security and illumination function. For offshore and coastal onshore helipads, inspect every 6 to 8 weeks.
Planned replacement before failure: annually for onshore helipads in typical UK conditions; six-monthly for coastal onshore sites; 6 to 9 months for offshore helidecks.
All inspections should be recorded. For hospital helipads, the record sits in the estates maintenance log. For licensed heliports, it sits in the aerodrome maintenance records. For offshore helidecks, it forms part of the helideck safety file that supports the HCA inspection.
Download our free windsock inspection checklist for a formatted inspection record suitable for all helicopter landing area types.
Browse helipad and helideck windsocks | Contact our team
Frequently asked questions
What CAA publication governs windsocks on offshore helidecks? CAA CAP 437 Standards for Offshore Helicopter Landing Areas provides the criteria applied by the CAA in assessing the standards of offshore helicopter landing areas for worldwide use by helicopters registered in the UK. It is also internationally regarded as best practice beyond UK waters. The current edition is available on the CAA website.
What publication covers hospital helipad windsocks? CAA CAP 1264 Standards for Helicopter Landing Areas at Hospitals is the applicable reference for NHS and hospital helicopter landing sites. Hospital helipads are typically unlicensed and not directly subject to CAP 168, but helicopter operators assess them against CAP 1264, which references ICAO Annex 14 Volume II for the physical specification.
Does an offshore helideck windsock need to be ATEX certified? The windsock fabric does not require ATEX certification, but the illumination system does if the helideck location carries an ATEX zone classification ; which all oil and gas platform helidecks do. CAP 437 requires internally illuminated windsocks on helidecks used for night operations, with all electrical components certified to the appropriate ATEX/IECEx standard for the zone classification of the installation location.
What size windsock does a hospital helipad need? Typically 4ft to 8ft, sized to be clearly readable from the approach path at the distances and angles used by the aircraft operating to that site. The right size depends on the approach distances, surrounding environment and aircraft types. Contact our team to discuss sizing for your specific installation.
How often should a helipad windsock be replaced? Annually for typical onshore helipads in UK conditions; six-monthly for coastal sites exposed to salt and high winds; 6 to 9 months for offshore helidecks. Replace immediately on any finding of fading, fraying, waterlogging or hardware failure. Always hold a spare on site.
What is the Helideck Certification Agency and how does it relate to windsocks? The HCA, acting for the interests of offshore helicopter operators, provides Helicopter Landing Area Certificates as a product of helideck inspections. The wind direction indicator is assessed as part of the HCA inspection against CAP 437 requirements. A non-compliant or degraded windsock will be identified in the HCA report and can affect the platform’s Helicopter Landing Area Certificate status.
